Scissor Lift (Electric)

* Weekly & long-term hire rates available - contact us for more info

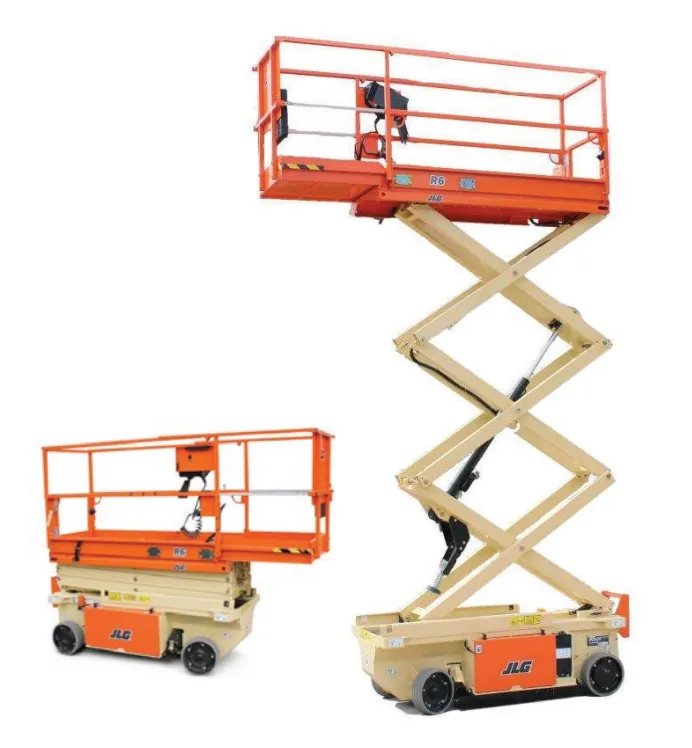

R6 ELECTRIC SCISSOR LIFT

Performance:
- Platform Height—Elevated 5.64 m
- Platform Height—Lowered 1.0 m
- Platform Capacity 230 kg
- Capacity on Deck Extension 120 kg
- Lift/Lower Time 25/26 sec
- Maximum Drive Height 5.64 m
- Weight 1,588 kg
- Ground Bearing Pressure 8.4 kg/cm2

Drive Speed
- Lowered 4 km/h
- Elevated 0.8 km/h

Gradeability 25%

Turning Radius
- Inside 0.6 m
- Outside 2.2 m

Standard Specifications:
Tyres: Solid, Non-Marking
Brakes:
• Electric, Friction on Drive Wheels
• Guard Rail Type--Fixed
Power Source:
Batteries 4 x 6V, 220 AH
Charger 25 Amp
Drive 24V DC
Pump 3.2 cc/rev @ 2,300 psi (178 kg/cm2)

Hydraulic System: Capacity 5 L

Standard Features
• Proportional Controls
• Industry Leading Duty Cycles
• Battery Condition Indicator
• Automatic Traction Control (ATC)
• All Motion Alarm
• 25 Amp Automatic SCR Charger
• Horn
• Hourmeter
• Flashing Amber Beacon
• Lubrication-Free Scissor Arm Bushings
• Tilt Alarm and Light
• LSS – Load Sensing System
• Forklift Pockets
• Moveable, Removable Platform Control
• Manual Descent Pull Cable
• Mechanised Pothole Protection
• Scissor Maintenance Prop
• 70 cm Roll-Out Deck Extension
